SRS TOP XL

Categories:

SRS TOP XL

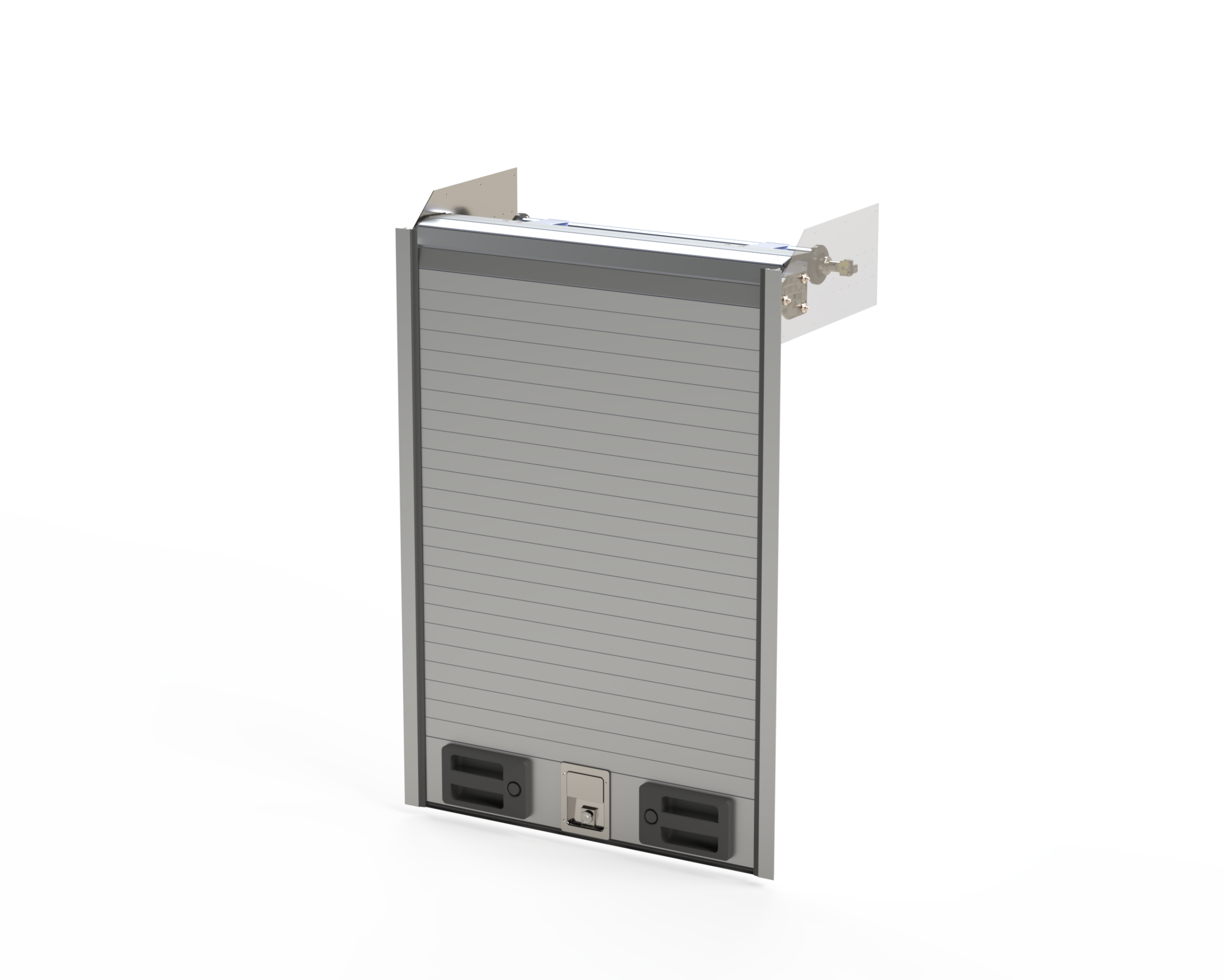

Description of SRS TOP XL

The aluminium roller shutter mod. TOP XL is assembled with profile H38, is realized with the required heights in extruded shapes and special characteristics. It can be used for the main compartments, in substitution to the troublesome leaf-doors. Usually, the roller shutters are delivered silver anodized or RAL 7035 painted, or on demand painted in different RAL colours. The space-saving TOP shutters have a special wrapping roll Ø60, pre-set in accordance to the shutters dimensions.
The TOP XL shutters are realized for big areas, but are also a good solution for areas until 5m2. They are very strong and have an increased closing part, wrapping roll and a special hooking system. They are mostly required for commercial and distribution vehicles.

OPERATING DIMENSIONS
Maximum surface area allowed 7 m²
Max. width 2900 mm
Max. height 2500 mm
Min. width 1000 mm
SHUTTER WEIGHT FOR 1m²
Shutter H38 11 Kg

PRODUCTION OF ALUMINUM ROLLER SHUTTERS FOR INDUSTRIAL VEHICLES

Contact us for more information and request a free quote

If you want to receive more information or to request a quote on our products, compile the form on this page. You will be prompt contated by our staff.



The alternative contacts the Serena Production srl office directly at the telephone numbers:

030 2680909 - 030 2677496 - 030 2170480
